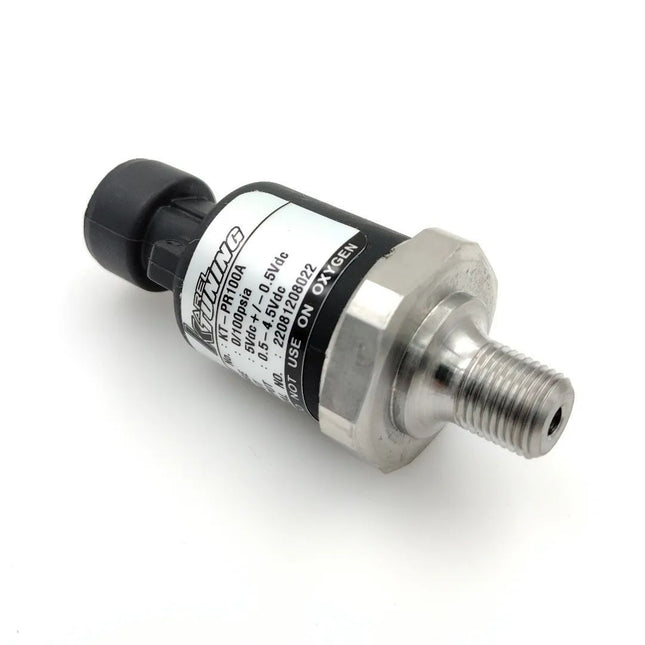

Our MAP sensors are top of the line when it comes to motosports pressure transducers. These are manufactured by Ashcroft with all 316L stainless steel wetted materials to our specifications for use in Motorsports and racing. Engineered for installations that produce substantial vibration, shock, and high-cycling.
Features a 1/8" NPT thread and popular metri-pack connector
+/- 0.50% of span static accuracy (BFSL) at reference temperature
All 316L Stainless Steel wetted materials
All-welded sensor and pressure connections
High EMI/RFI immunity rating
UL/cUL and CE approved
Diaphragm: 316L stainless steel
Process Connection: 316L Stainless Steel
Housing: 20% Glass Reinforced Nylon, Fire retardant to UL94 V1
Data:
0 psia @ 0.5V100 psia @ 4.5V
Maximum boost 85psi
Our pressure sensors are manufactured by Ashcroft to our strict specification and combine performance with value to meet the requirements of motorsports racing. The field-proven polysilicon thin film pressure sensor provides excellent overpressure capability and outstanding durability despite substantial shock and vibration.
These sensors are perfect for harsh environments, feature 1/8 NPT thread and the popular metri-pack connector.
+/- 0.25% of span static accuracy (BFSL) at reference temperature
All stainless steel wetted materials
High EMI/RFI immunity rating
UL/cUL and CE approved
Diaphragm: 17-4PH Stainless steel
Process Connection: 304 Stainless steel
Housing: 20% Glass Reinforced Nylon, Fire retardant to UL94 V1
Range:
0 psig @ 0.5V150 psig @ 4.5V
