Engine Management (ECU)

Outputs: Up to 8 injector and 8 ignition. Suits: Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts. Includes: Elite 2500 ECU with DBW and Race Functions. Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit fuse box and lid. 4 relays, 7 fuses and pins for the 2 spare power circuits. USB programming cable and USB Software Key. Notes: Top of the range, two-connector ECU. Ideal for popular late model performance and racing applications. ECU OVERVIEW Haltech's Elite 2500 ECU takes the art of engine calibration to a whole new level. Featuring a robust environmentally sealed water resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide. Supports 1 to 12 Cylinder engines 2 to 4 Rotor engines Normally aspirated or forced induction Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) Staged, Sequential, semi sequential, batch or multipoint injection patterns Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems Connect to a wide range of display dashes and expansion devices via CAN. Waterproof Case (With Pocket Cover Fitted) 8 x Fuel Injection Outputs 8 x Ignition Outputs 12 x Digital Outputs 10 x Analogue Voltage Inputs 4 x Synchronised Pulsed Inputs 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor) 2 x Dedicated Engine Position Inputs with extensive trigger type support Up to 45 channels of Input & Output (I/O) expansion (via CAN) USB Laptop communication (Windows) NSP Calibration Software - Intuitive and easy to use

Read more less

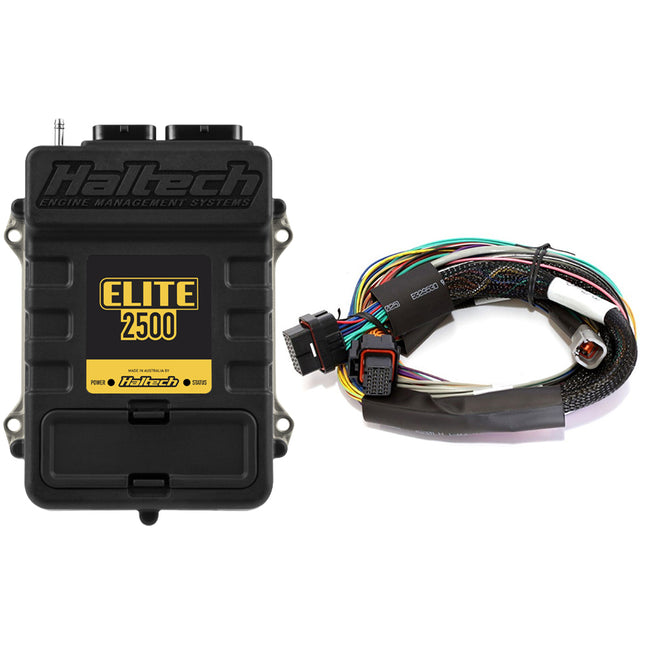

Outputs: Up to 8 injector and 8 ignition. Suits: Universal 1-12 cylinder or 2-4 rotor applications. Includes: Elite 2500 ECU with DBW and Race Functions. Basic Universal Wire-In Harness, USB programming cable and USB Software Key. Notes: Haltech's top of the range, two-connector ECU. Ideal for popular late model performance and racing applications. Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts. Does not include fuse and relay box. ECU OVERVIEW Haltech's Elite 2500 ECU takes the art of engine calibration to a whole new level. Featuring a robust environmentally sealed water resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide. Supports 1 to 12 Cylinder engines 2 to 4 Rotor engines Normally aspirated or forced induction Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) Staged, Sequential, semi sequential, batch or multipoint injection patterns Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems Connect to a wide range of display dashes and expansion devices via CAN. Waterproof Case (With Pocket Cover Fitted) 8 x Fuel Injection Outputs 8 x Ignition Outputs 12 x Digital Outputs 10 x Analogue Voltage Inputs 4 x Synchronised Pulsed Inputs 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor) 2 x Dedicated Engine Position Inputs with extensive trigger type support Up to 45 channels of Input & Output (I/O) expansion (via CAN) USB Laptop communication (Windows) NSP Calibration Software - Intuitive and easy to use

Read more less

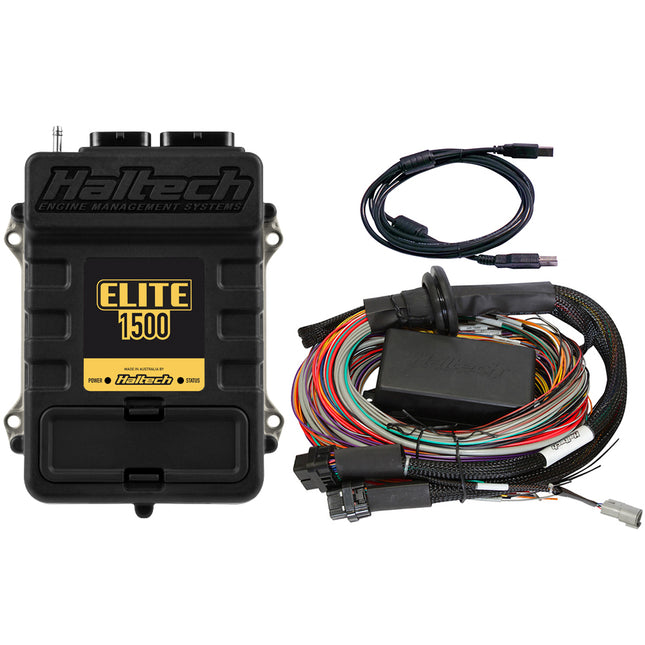

Outputs: Up to 4 injector and 4 ignition. Suits: Universal 1-12 cylinder or 2 rotor applications. Includes: Elite 1500 ECU with DBW and Race Functions. Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit Haltech fuse box and lid. 4 relays, 7 fuses and pins for the 2 spare power circuits. Waterproof USB cap, USB programming cable and USB Software Key. ECU OVERVIEW Featuring a robust, environmentally sealed, water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, knock control, and much more, the Elite 1500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 1500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide. Supports 1 to 12 cylinder engines 2 rotor engines Normally aspirated or forced induction Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) Staged, sequential, semi sequential, batch or multipoint injection patterns Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems Connect to a wide range of display dashes and expansion devices via CAN. 4 x fuel injection outputs 4 x ignition outputs 12 x digital outputs 10 x analogue voltage inputs 4 x synchronised pulsed inputs 3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor) 2 x dedicated engine position inputs with extensive trigger type support Up to 45 channels of Input & Output (I/O) expansion (via CAN) USB laptop communication (Windows) ESP Calibration Software - intuitive and easy to use

Read more less

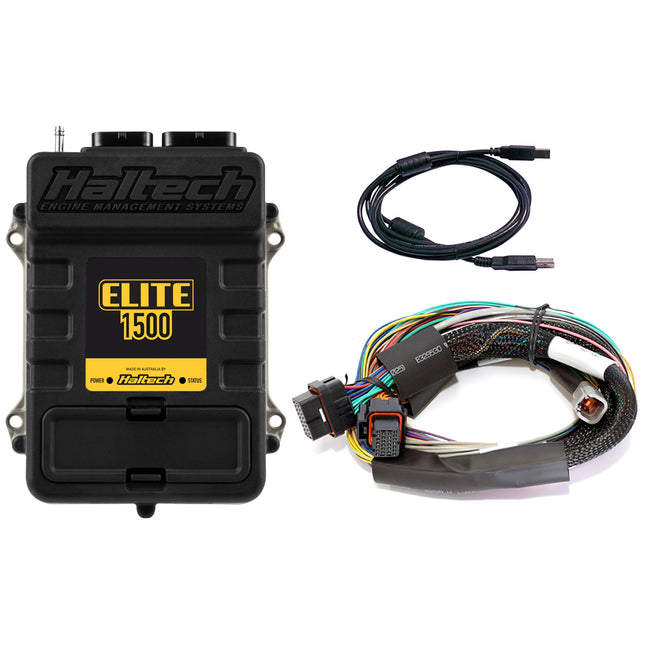

Outputs: Up to 4 injector and 4 ignition. Suits: Universal 1-12 cylinder or 2 rotor applications. Includes: Elite 1500 ECU with DBW and Race Functions. Basic Universal Wire-In Harness. Waterproof USB cap, USB programming cable and USB Software Key. Notes: Does not include fuse and relay box. ECU OVERVIEW Featuring a robust, environmentally sealed, water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, knock control, and much more, the Elite 1500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 1500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide. Supports 1 to 12 cylinder engines 2 rotor engines Normally aspirated or forced induction Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) Staged, sequential, semi sequential, batch or multipoint injection patterns Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems Connect to a wide range of display dashes and expansion devices via CAN. 4 x fuel injection outputs 4 x ignition outputs 12 x digital outputs 10 x analogue voltage inputs 4 x synchronised pulsed inputs 3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor) 2 x dedicated engine position inputs with extensive trigger type support Up to 45 channels of Input & Output (I/O) expansion (via CAN) USB laptop communication (Windows) ESP Calibration Software - intuitive and easy to use

Read more less

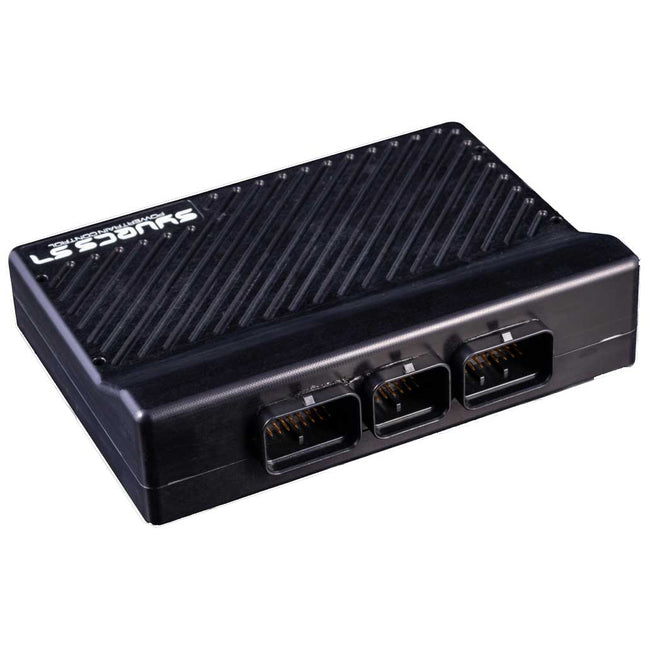

The S7Plus is our newest management system offering 22 x Inputs, 16 x Fuel Outputs, 8 x H-Bridge Outputs 6 x Ignition Outputs, 2 x Lambda Input, 2 x Knock Input, 2 x EGT Input and Main Relay Control. All software features are enabled from factory except for Direct Injection control and Paddle-Shift control which is an optional upgrade The S7-Plus ECU offers an extremely high level of precise engine management control. The triple processor unit uses a high speed RISC processor for code execution and an additional large FPGA for high speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet easy to map for the end user still using our SCal software and S7 Firmware.Designed to cater for PnP kits where clients also need the programmable CAN Bus and Drive-By-Wire support offered by the S7-Plus. The third processor present is available for in the future users to write their own code in C for Full Vehicle Integration via Canbus and Build some custom strategies to handle some of the unique requirements which are now found in OEM Applications. Currently only Syvecs staff can do this but we are working on offering this out to all our dealers very soon!Cased In A Sealed Aluminium Billet Unit With 3 x Waterproof Connectors Offering 94pinsInputs22 x General Purpose Analogue Inputs:10 x 5V/Bipolar, Sensor/Sync/Speed, Programmable Trigger Voltages4 x 5V/Thermistor, Sensor/Sync/Speed, Fixed Trigger Voltages4 x 5V Sensor Input4 x Thermistor Sensor Input2 x NTK / LSU4.9 / Denso AF Lambda Inputs1 x K-Type Thermocouple Circuit (Two Available if not use 2nd Canbus)2x Knock InputOutputs30 x High/Low Side Driver Outputs:8 x Half Bridge Outputs (Max 10 Amps)16 x Low Side Injection/PWM Outputs (Max 10 Amps)6 x TTL / IGBT Ignition DriversMain Relay Control Circuit with Wake on Can SupportComms3 x Can 2.0B – (3rd CanBus takes over EGT1 Pins and not programmable from Scal, Custom Use only)1 x Rs232 Output1 x Kline Output100 Mhz Full Duplex Ethernet For Connection To PC For Programming And Data Download 32mb Onboard Logging memory6 to 20v input voltage range with reverse polarity protection3 x regulated 5V sensor supply outputs with protectionOperating Temperature -55 to +125 CDimensions : 185 X 145 X 55 mm

Read more less

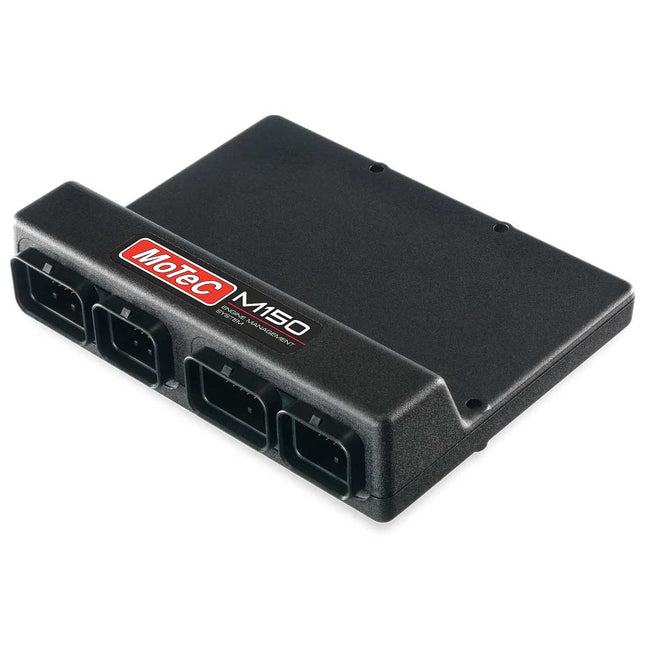

NOTE: Due to the many options and configurations available on these ECUs, please contact us before purchasing. We are Motec authorized dealers and will happily assist you with the firmware and datalogging selection. This item includes Datalogging Level 2 and GPR firmware MoTeC’s M150 ECU begins a new era in engine control. The M1’s unique technology redefines the meaning of customization, delivering total control without compromise, and highly advanced security strategies make these ECUs ideal for both category managed and unrestricted applications. I/O 12 Peak & Hold Injector Drivers 12 Lowside Ignition Outputs 6 Lowside Auxiliary Outputs 10 Half Bridge Outputs 12 Universal Digital Inputs 4 Digital Inputs 17 Analog Voltage Inputs 4 Analog Temperature Inputs 4 Knock Inputs 2 Narrowband Lambda 3 CAN Bus, 1 RS232, 1 LIN 250 MB Logging Physical Information Connectors 2 x 34 pin waterproof connector 2 x 26 pin waterproof connector Case size 162 x 127 x 39 mm Weight 450g Features Small and light in robust magnesium enclosure Port injection injector type Large logging memory Latest generation high performance processor Customizable configuration (see separate section) Customizable firmware / functionality Suitable for modern engines with DBW, Cam control and a CAN bus. Advanced logging features, high speed, multiple logs (with access logins), I/O expansion, Pro Analysis Flexible tuning software Robust and comprehensive security features (see separate section) Programmable injector drive characteristics Programmable digital input system for Ref/Sync, wheel speeds etc. Programmable trigger levels, diagnostics All Low Side and Half Bridge outputs have PWM capability Available Upgrades Various Logging Options Configuration Locked Configuration Standard Configuration Open Configuration Software Microsoft Windows™ based software PC Tuning software ‘Tune’ - Used to tune fuel and ignition, set up sensors, outputs and available functions PC Software ‘Build’- Used to create a custom software package with user specific functions

Read more less

Includes GPR Firmware & Level 2 Logging MoTeC’s M130 ECU begins a new era in engine control. The M1’s unique technology redefines the meaning of customization, delivering total control without compromise, and highly advanced security strategies make these ECUs ideal for both category managed and unrestricted applications. I/O 8 Peak & Hold Injector Drivers 8 Lowside Ignition Outputs 2 Lowside Auxiliary Outputs 6 Half Bridge Outputs 7 Universal Digital Inputs 8 Analog Voltage Inputs 4 Analog Temperature Inputs 2 Knock Inputs 1 CAN Bus 120 MB Logging Physical Information Connectors 1 x 34 pin waterproof connector 1 x 26 pin waterproof connector Case size 107 x 127 x 39 mm Weight 290g Features Small and light in robust magnesium enclosure Port injection injector type Large logging memory Latest generation high performance processor Customizable configuration (see separate section) Customizable firmware / functionality Suitable for modern engines with DBW, Cam control and a CAN bus. Advanced logging features, high speed, multiple logs (with access logins), I/O expansion, Pro Analysis Flexible tuning software Robust and comprehensive security features (see separate section) Programmable injector drive characteristics Programmable digital input system for Ref/Sync, wheel speeds etc. Programmable trigger levels, diagnostics All Low Side and Half Bridge outputs have PWM capability Available Upgrades Various Logging Options Configuration Locked Configuration Standard Configuration Open Configuration Software Microsoft Windows™ based software PC Tuning software ‘Tune’ - Used to tune fuel and ignition, set up sensors, outputs and available functions PC Software ‘Build’- Used to create a custom software package with user specific functions

Read more less

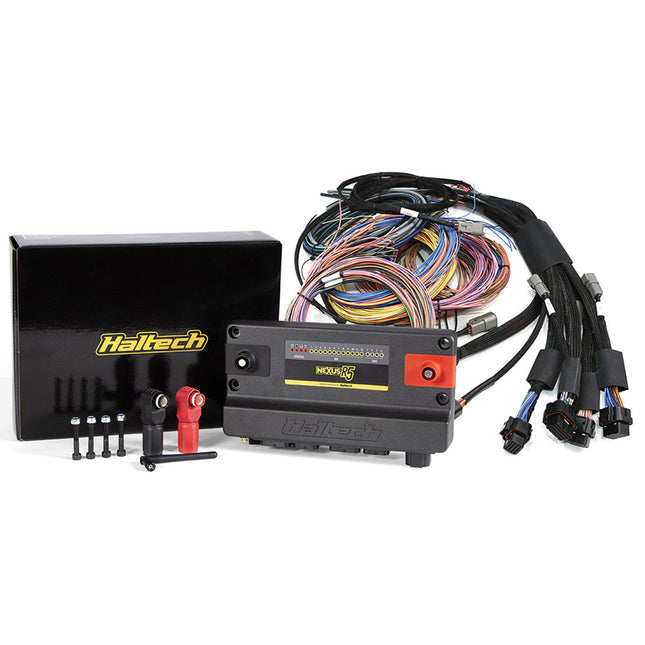

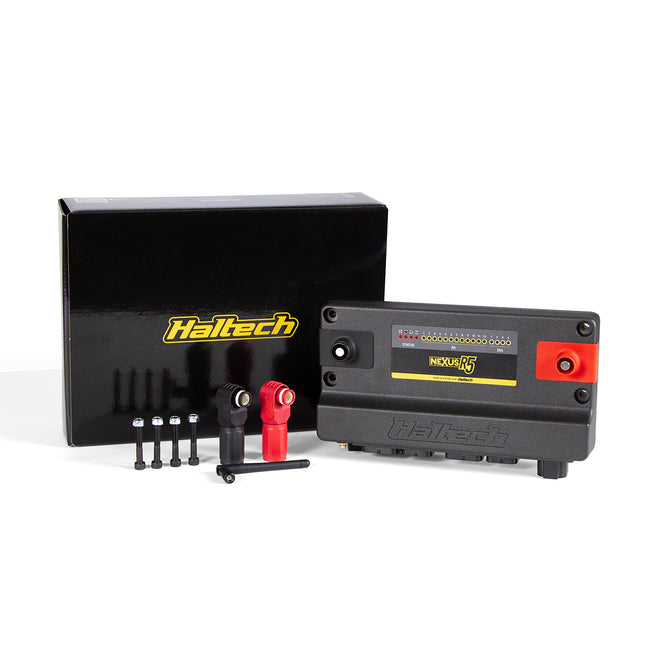

Suits: Racing application where advanced race features, data logging and power management control is required. Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap, USB drive with NSP Software. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4. Plug and Pin Set - Suits Nexus R5 use in converting an existing loom to suit NEXUS R5 applications. VCU OVERVIEW NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit). 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump) 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc) 18 x peak/hold injector drivers (can be used as low side drive outputs) 12 x low current ignition outputs (can be used as low side drive outputs) 8 x low side drive outputs, PWM capable (DPOs) 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs 2 x onboard wideband controllers, supporting NTK and LSU4.9 3 x CAN ports with switchable termination

Read more less

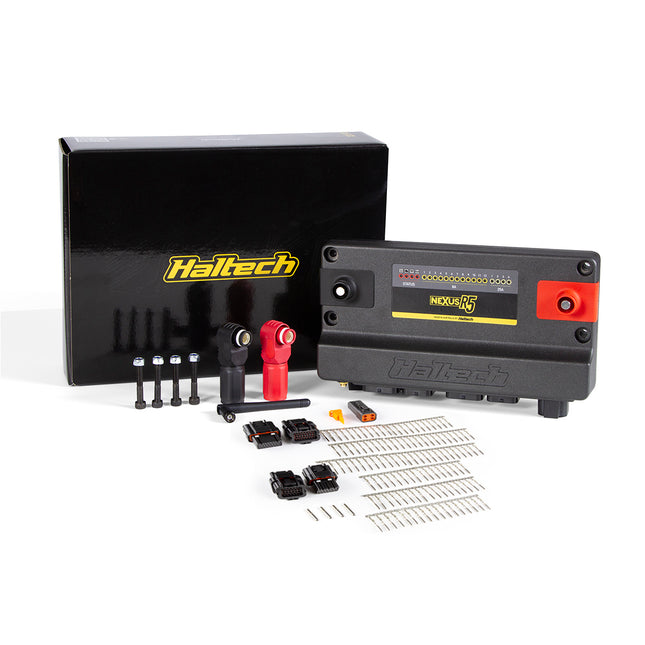

Suits: Racing application where advanced race features, data logging and power management control is required. Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap, USB drive with NSP Software. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4. Plug and Pin Set - Suits Nexus R5 use in converting an existing loom to suit NEXUS R5 applications. VCU OVERVIEW NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit). 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump) 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc) 18 x peak/hold injector drivers (can be used as low side drive outputs) 12 x low current ignition outputs (can be used as low side drive outputs) 8 x low side drive outputs, PWM capable (DPOs) 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs 2 x onboard wideband controllers, supporting NTK and LSU4.9 3 x CAN ports with switchable termination

Read more less
